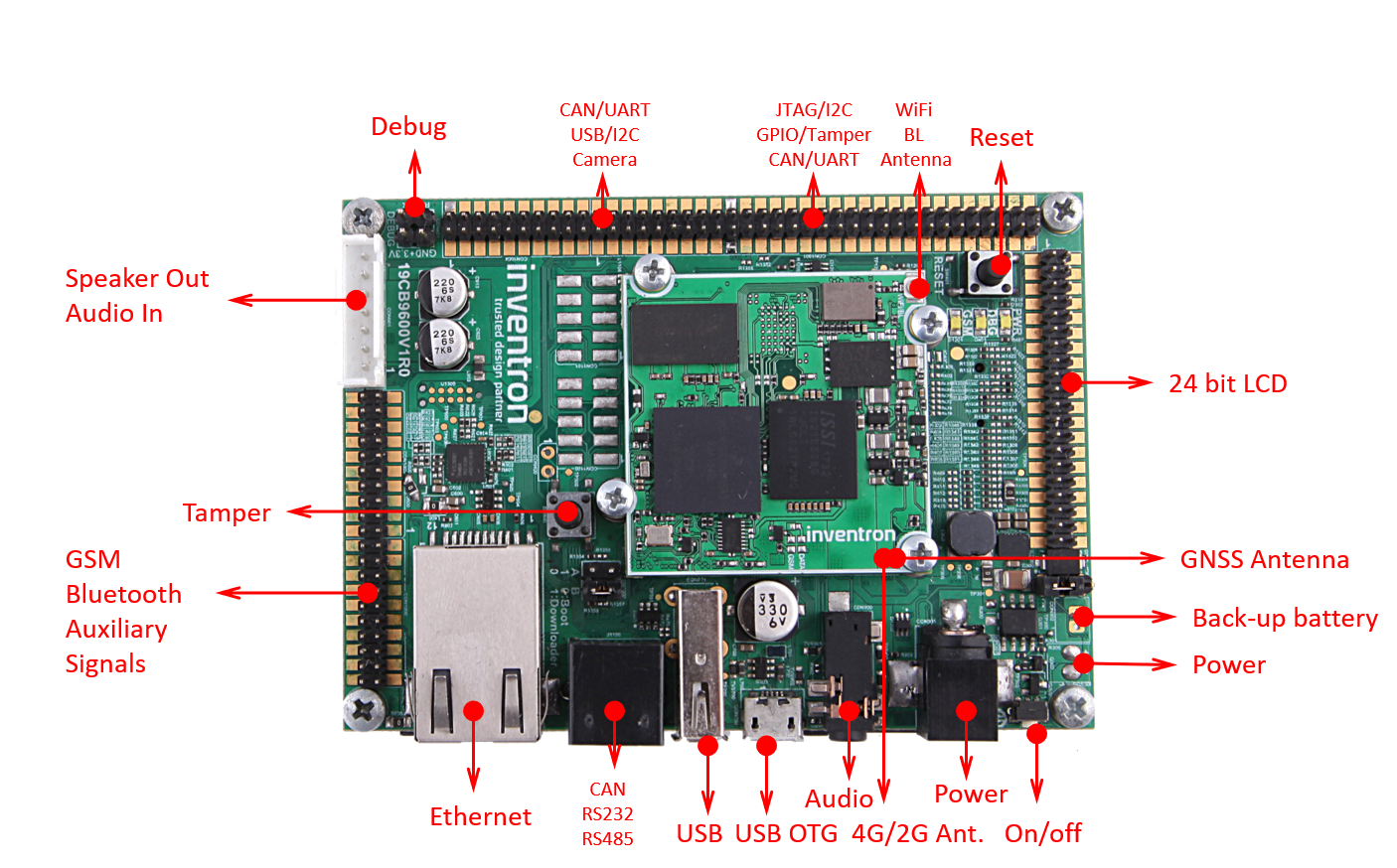

FEATURES

APPLICATION PROCESSOR

NXP i.MX6UL, ARM® Cortex®-A7 @ 528 MHz, 128 KB L2 cache with NEON™ MPE (Media Processor Engine) co-processor

MEMORY

up to 16 GB eMMC

up to 1 GB DDR3

up to 2 GB NAND or 128 MB SPI NOR Flash (optional)

GRAPHICS

2D Pixel Processing Pipeline (PXP)

LCD

8/16/18/24bit parallel LCD Display up to WXGA (1366×768)

CAMERA

 8/10/16/24-bit Parallel CSI with BT.656 support

SECURITY

ARM TrustZone, Secure Boot (HAB),  Hardware cryptographic accelerators, True Random Number Generator (TRNG), e-FUSE (OTP Memory), Secure RTC, Secure Non-Volatile Storage,  Zeroizable Secret Key, Active& Passive Tamper Detection, Power Glitch Detectors, Mesh Monitoring,  Universal unique ID, Hardware bus encryption, TrustZone Watchdog, RSA4096 DPA Protection

MECHANICAL DIMENSIONS

40X40X5.2 mm

ETHERNET

2x 10/100 Mbit Ethernet MAC + IEEE 1588

USB

2x high speed (HS) USB 2.0 OTG (Up to 480 Mbps), with integrated HS USB Phy

EXPENSION CARD:

1x SD/SDIO/MMC (eMMC)

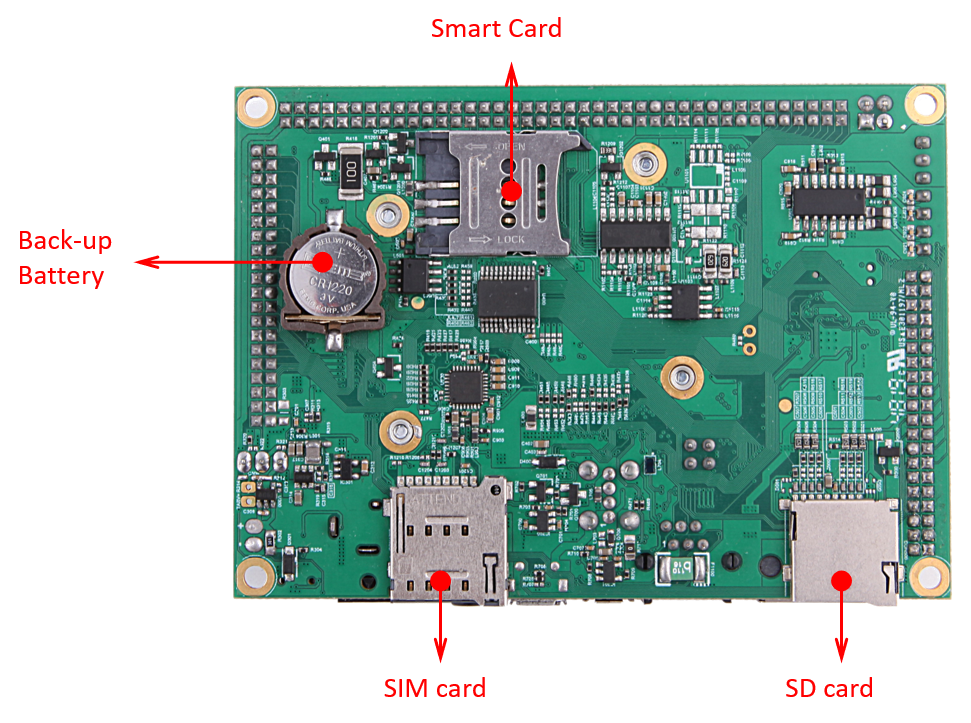

SMART CARD

2x ISO/IEC 7816 (Compatible with EMV Version 4.3)

SERIAL

5x UART, 4x I2C, 3x SPI, 2x CAN

AUDIO

3x I2S, 1xS/PDIF

PWM

8x

ADC

2x 12-bit

KEYPAD

8×8

GPIO

upto 65 pins

RTC

1x Secure

TAMPER PINS

5xActive 10xPassive

WATCHDOG

3x

TOUCH SCREEN

1x 4-wire/5-wire touch controller

Wi-Fi (optional)

802.11 b/g/n 65Mbps; Modulation: DSSS / CCK / OFDM, FCC/IC “Reference” Certified, ETSI Certified

BLUETOOTH (optional)

v4.2 BR/EDR/LE, 3 Mbps

4G LTE Cat M1/

NB1 (NB-IoT) (Optional)

LTE FDD: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B28
Cat M1: Max. 375Kbps (DL), Max. 375Kbps (UL)
Cat NB1: Max. 32Kbps (DL), Max. 70Kbps (UL)

2G EGPRS

(Optional)

850/900/1800/1900MHz
EDGE: Max. 296Kbps (DL), Max. 236.8Kbps (UL)
GPRS: Max. 107Kbps (DL), Max. 85.6Kbps (UL)

GNSS

GPS, GLONASS, BeiDou/Compass, Galileo, QZSS (with active antenna supply)

ANTENNA

3x IPX U.FL RF Connector (4G/2G, Wi-fi+Bluetooth, GNSS))

OPERATING VOLTAGE

3.4V-4.2V (typ. 3.8V)

SOFTWARE & TOOLS

Open Source Board Support Package (Linux 6.1, UBoot 2021)

Proprietary Security Drivers,

Graphics Support wth QT5, QT6, Wayland and XServer
